Industrial overhead cranes serve as the lifeblood of modern manufacturing. Automated material handling heavily depends on precise equipment movement. However, heavy industrial environments severely punish legacy sensor systems. Relying on mismatched setups leads to constant micro-stoppages. You face dangerous load sway and serious collision risks when legacy sensors fail. Engineers upgrading to automated storage and retrieval systems (AS/RS) face a critical choice. You must select a positioning technology balancing millimeter-level precision against extreme environmental resilience. We provide an objective, evidence-based evaluation of three industry-standard solutions. You will explore the operational realities of encoders, laser systems, and Gray Code arrays. Our analysis covers their mechanical reliability and real-world maintenance demands. This guide helps you identify the exact system needed to optimize facility uptime, ensure worker safety, and future-proof your automated architecture.
Encoders offer a budget-friendly, traditional approach but are highly vulnerable to mechanical wear and wheel slippage, making them less suitable for high-precision automation.
Laser Distance Measurement provides exceptional non-contact accuracy over long distances, provided the environment is strictly controlled and free of optical interference (dust, smoke, fog).
Gray Code crane positioning delivers the most robust absolute positioning for harsh environments, ensuring immediate location recovery after power loss without requiring homing cycles.
The optimal choice depends directly on your facility's environmental baseline, runway length, and tolerance for maintenance-induced downtime.
Effective crane position detection prevents expensive operational bottlenecks. Minor positioning deviations compound quickly across your facility. They cause significant cycle-time delays during automated pick-and-place operations. Every single second counts in a modern AS/RS warehouse. A crane missing its target by just a few millimeters triggers a system fault. The machinery stops abruptly. Operators must manually intervene to reset the system. This bottleneck reduces your overall hourly throughput drastically. Multiply this delay across dozens of daily operations. The resulting productivity loss becomes staggering.
Faulty positioning data also threatens facility safety and compliance. Incorrect distance reporting leads directly to end-stop collisions. A massive crane might crash into concrete barriers or structural supports. Restricted zone violations present an even greater danger. Cranes sometimes enter protected areas containing human workers. Modern safety standards demand fail-safe location tracking. You cannot compromise on structural safety or worker protection.
You must also account for hidden downtime. Maintenance logs rarely explicitly mention "position drift". They usually cite ambiguous tasks like "sensor recalibration" or "lens cleaning". These minor tasks silently drain facility productivity. Legacy systems require frequent manual homing cycles. A homing cycle forces the crane to travel back to a physical zero-point. This unnecessary movement wastes valuable production time and increases mechanical wear.
Traditional encoder positioning serves as the mechanical baseline for many older facilities. These rotary devices attach directly to a crane’s drive wheel. Some setups use a trailing measuring wheel instead. The devices measure physical rotation continuously. The programmable logic controller (PLC) translates this physical rotation into linear distance. Engineers classify these devices into two main categories.
First, we have incremental systems. Using an incremental encoder is cost-effective initially. However, these devices lose all position data during a power failure. You must perform a time-consuming homing run after every reboot. Second, we have absolute versions. Absolute devices retain their data across power cycles. They eliminate the homing run requirement entirely.
Despite these differences, both types share severe mechanical limitations.
The Wheel Slippage Problem: Heavy cranes routinely slide on steel rails during acceleration. They also slide during rapid braking. Encoders measure wheel rotation, not true crane movement. This discrepancy creates accumulating position drift.
Mechanical Wear: Bearings and physical couplings degrade rapidly. High-vibration environments destroy these moving parts quickly. Facilities must schedule frequent maintenance replacements to prevent catastrophic failures.
Bouncing Wheels: Trailing wheels often bounce over uneven rail joints. This bouncing severs contact momentarily, causing the system to miss vital distance counts.
Modern laser distance measurement uses advanced optical sensors. Most units utilize time-of-flight or phase-shift principles. A stationary sensor bounces a continuous laser beam off a moving reflector. The reflector mounts directly on the moving crane bridge. The PLC calculates the exact distance based on the returning light pulse.
This technology provides distinct evaluation advantages for modern plants. It operates completely contact-free. It eliminates mechanical wear entirely from the measurement equation. You never worry about wheel slippage again. It delivers incredible accuracy over extremely long distances. Top-tier systems reliably cover runways up to 500 meters long.
However, you face specific implementation realities and risks.
Optical Vulnerability: Airborne particulates severely degrade the optical signal. Heavy dust, smoke, and steam physically block the beam. Direct ambient sunlight interference can also saturate the receiver photodiode.
Alignment Sensitivity: Crane runways often warp over years of heavy use. Bridges skew slightly during unbalanced heavy lifting. These structural shifts cause the laser to miss the reflector entirely. The system triggers sudden, unexpected faults.
Maintenance Assumptions: You must implement strict alignment protocols. Maintenance teams must clean sensor lenses and reflectors regularly. Dirty reflectors drop the signal amplitude drastically.

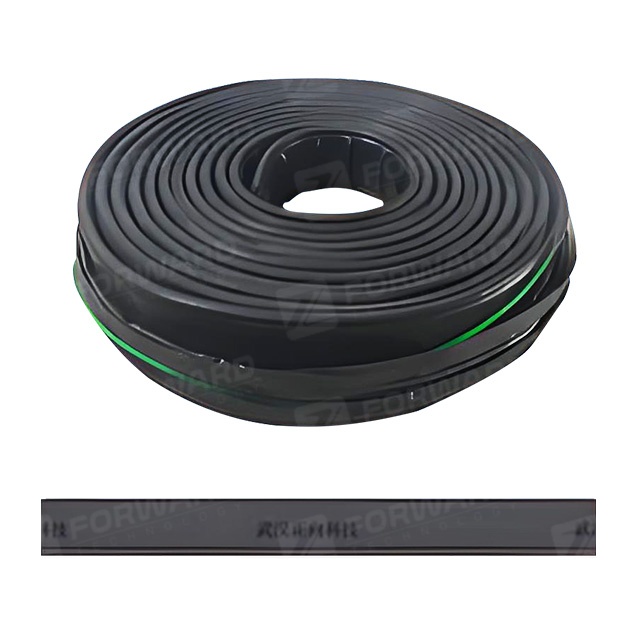

Advanced Gray Code crane positioning utilizes a rugged, non-contact reader. The reader moves seamlessly along a physical rail or tensioned cable. This rail features a specifically encoded Gray Code pattern. Gray Code represents a binary numeral system. Only one single bit changes at any given time. This unique mathematical property prevents wild location reading errors.
It delivers true absolute positioning without fail. Imagine a heavy crane suddenly losing facility power. Its exact location remains known instantly upon system reboot. You never experience accumulating position drift. It requires absolutely zero homing cycles. You resume full production operations immediately.
These systems resist harsh operational conditions effortlessly. They ignore environmental contaminants completely. Heavy dust, thick oil, and pooling moisture do not affect them. They remain entirely immune to wheel slippage and rail vibrations.

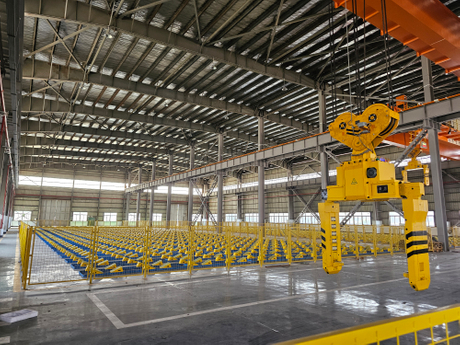

However, installation complexity requires careful attention. You must install the physical code rail continuously. It must span the entire crane runway length securely. This infrastructure requirement involves higher upfront labor and material commitments. It fits specific heavy-duty use cases best. Steel mills benefit greatly. Galvanizing plants see massive improvements. High-throughput AS/RS facilities favor this robust technology immensely.
Running a proper crane positioning technology comparison requires evaluating your baseline environments. You must match the technology directly to your facility reality. Clean, climate-controlled facilities suit laser systems perfectly. Harsh, dusty, or heavily vibrating plants demand Gray Code arrays. Low-demand or severely budget-constrained manual cranes might still utilize standard encoders.
Scalability and runway length also dictate your final choice. Lasers scale easily over long distances. They require very little physical infrastructure. Gray Code requires continuous rail installation along the entire path. You must weigh the upfront installation labor against ongoing maintenance demands. Lasers require frequent cleaning routines. Encoders require mechanical replacements. Gray Code requires heavy initial installation but minimal ongoing touch-ups.
Technology Type | Ideal Operating Environment | Physical Wear Vulnerability | Maintenance Frequency | Data Retention After Power Loss |
|---|---|---|---|---|
Incremental Encoders | Low-speed, low-vibration manual cranes | High (Bearings, wheels, couplings) | Frequent recalibration required | No (Requires full homing cycle) |
Laser Measurement | Clean, climate-controlled AS/RS | Zero (Completely non-contact) | Regular lens and reflector cleaning | Yes (Immediate position read) |
Gray Code Systems | Harsh, dusty, high-vibration plants | Zero (Non-contact induction/optics) | Minimal to none | Yes (True absolute recovery) |
Migrating to a new positioning architecture introduces specific implementation risks. You must navigate protocol compatibility carefully. Ensure your chosen technology supports your existing PLC networks seamlessly. Many older plants still utilize legacy PROFIBUS configurations. Modern automated setups prefer fast PROFINET or Ethernet/IP networks. SSI protocols also remain common for absolute sensors. Verify communication speeds before purchasing hardware. Slow update rates cause blind travel during high-speed crane movements.

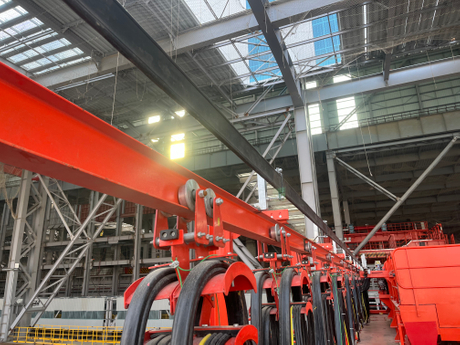

Retrofitting legacy runways presents physical challenges. You must evaluate runway structural integrity closely. Lasers fail constantly on structurally sagging runways. They lose their critical line-of-sight during heavy bridge flexing. Gray Code rails require custom mounting brackets. You must navigate around existing power rails and building supports. Building expansion joints require special bridging hardware to maintain rail continuity.
We highly recommend conducting a thorough site audit immediately. Assess your airborne dust levels objectively. Measure your rail straightness using professional laser alignment tools. Review your current downtime logs carefully. Identify exactly how many hours you lose to sensor faults. You must gather this concrete data before requesting vendor quotes or planning deployment schedules.
Transition from feature-based shopping to outcome-based automation architecture.
Prioritize environmental resilience over basic sensor component familiarity.
Eliminate mechanical wear dependencies for highly automated pick-and-place operations.
Ensure your selected system supports instant location recovery after power failures.
Encoder positioning holds historical precedence in many industrial plants. However, modern automated facilities demand significantly better reliability. Laser measurement excels brilliantly in clean, climate-controlled environments. Gray Code systems dominate absolutely in harsh environments demanding uninterrupted reliability. Consult a certified automation integration specialist today. Have them conduct a strict environmental audit of your specific crane runways. This proactive step ensures you select the perfect technology for your operational future.
A: Because encoders measure the rotation of the wheel, not the actual distance traveled. If a wheel spins without moving the crane (slippage), the PLC registers movement that didn't happen, causing a mismatch between expected and actual position.
A: Yes, but with significant caveats. Rain, fog, and direct sunlight can disrupt the optical signal. Specialized enclosures, heated lenses, and weather-rated reflectors are required, which increases complexity.
A: Because Gray Code is an absolute positioning system based on a fixed physical pattern, the sensor immediately reads its exact location the moment power is restored. No recalibration or homing run is required.
A: For manual operations, it may be overkill. However, for automated systems where precise load placement dictates throughput and safety, the elimination of homing cycles and position drift typically yields a rapid ROI.
