System Overview

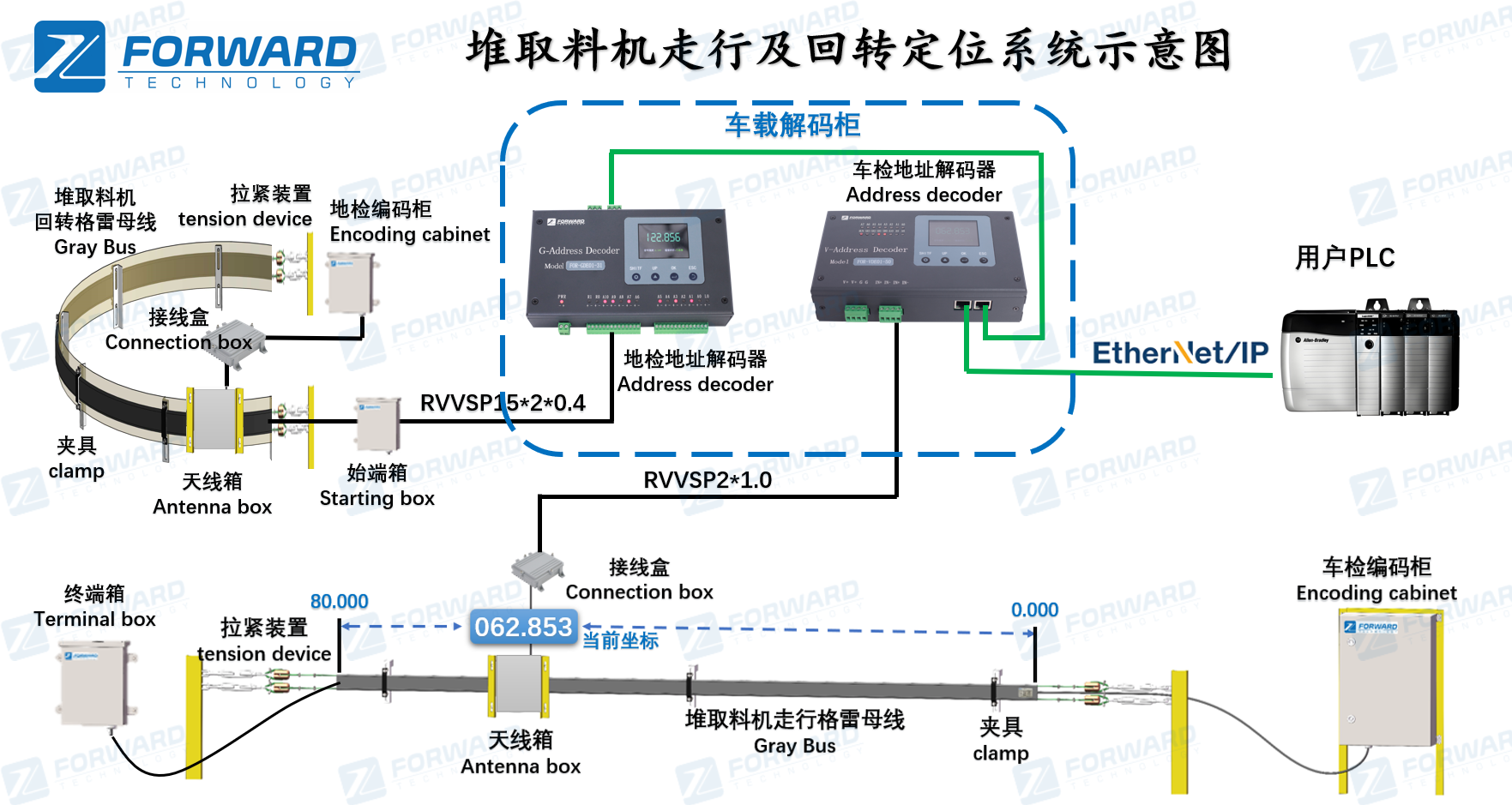

This system is a core position sensor combination specifically designed for stackers and reclaimers, consisting of a travel absolute position detection unit and a rotation absolute angle detection unit. Independent of the control system, its sole mission is to continuously and in real time collect and provide feedback on the precise millimeter-level coordinates of the gantry on the track and the precise angle of the boom, providing a stable, reliable, and interference-free position data source for the host computer system.
Core Focus
1. Hardcore Parameters, Reliable and Durable:
• Excellent Accuracy: Positioning accuracy of ±1mm and rotation angle detection accuracy of ±0.1° provide a solid foundation for automatic control.
• Absolute Measurement: Utilizing Gray busbar and absolute encoder technology, position is instantly determined upon power-up, completely eliminating cumulative error and eliminating the need for zero return upon power-off.
• Extremely Environmental Tolerance: With an IP67 protection rating, core components are resistant to dust, moisture, salt spray, vibration, and temperature fluctuations in the material field, with a design life of up to 20 years.
2. Truly Maintenance-Free Design:
• Non-contact Measurement: No physical contact between the sensor and the object being measured fundamentally eliminates accuracy degradation and failures caused by mechanical wear, significantly reducing subsequent maintenance costs and downtime.
3. Seamless Integration and Fast Response:
• Standard Interfaces: Providing mainstream interfaces such as Profibus-DP and Modbus TCP for easy integration into PLC systems.
• Localized Service: Providing rapid technical support, on-site commissioning guidance, and supply chain assurance for prompt response.
Core application industries
Port and terminal industry, thermal power plant energy industry, metallurgy and steel industry, cement industry, etc.
