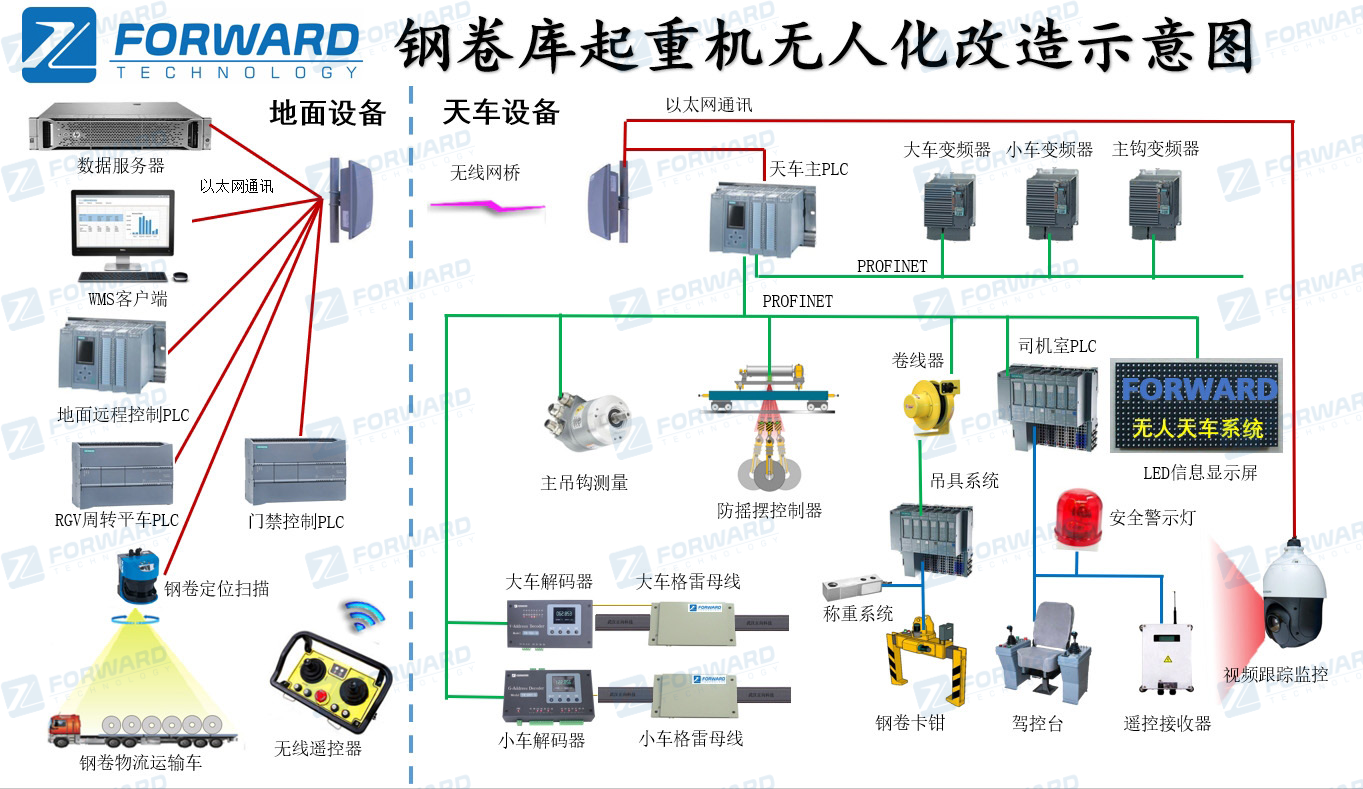

System Overview
The unmanned steel coil warehouse system launched by Wuhan Zhengxiang Technology Co., Ltd. is a comprehensive intelligent warehouse management system integrating precise positioning, intelligent collision avoidance, real-time inventory inventory, and automated scheduling. Leveraging multiple independently developed core technologies, the system enables unmanned and intelligent management of the entire steel coil warehouse process, significantly improving the safety, accuracy, and efficiency of warehouse operations.
Core Technologies
1. Gray Bus High-Precision Positioning Technology
Provides 1mm-level positioning accuracy, enabling real-time tracking of the crane and coil positions, providing a data foundation for automated control and collision avoidance.
2. Laser Scanning 3D Modeling Technology
Creates a real-time 3D model of the coils and storage area, identifying coil shape, coordinates, and posture, supporting precise inventory management and collision avoidance calculations.
3. Dynamic Collision Avoidance System
Multi-sensor fusion (LiDAR + Gray Bus) enables real-time collision avoidance and intelligent path planning between the crane, coils, and equipment.

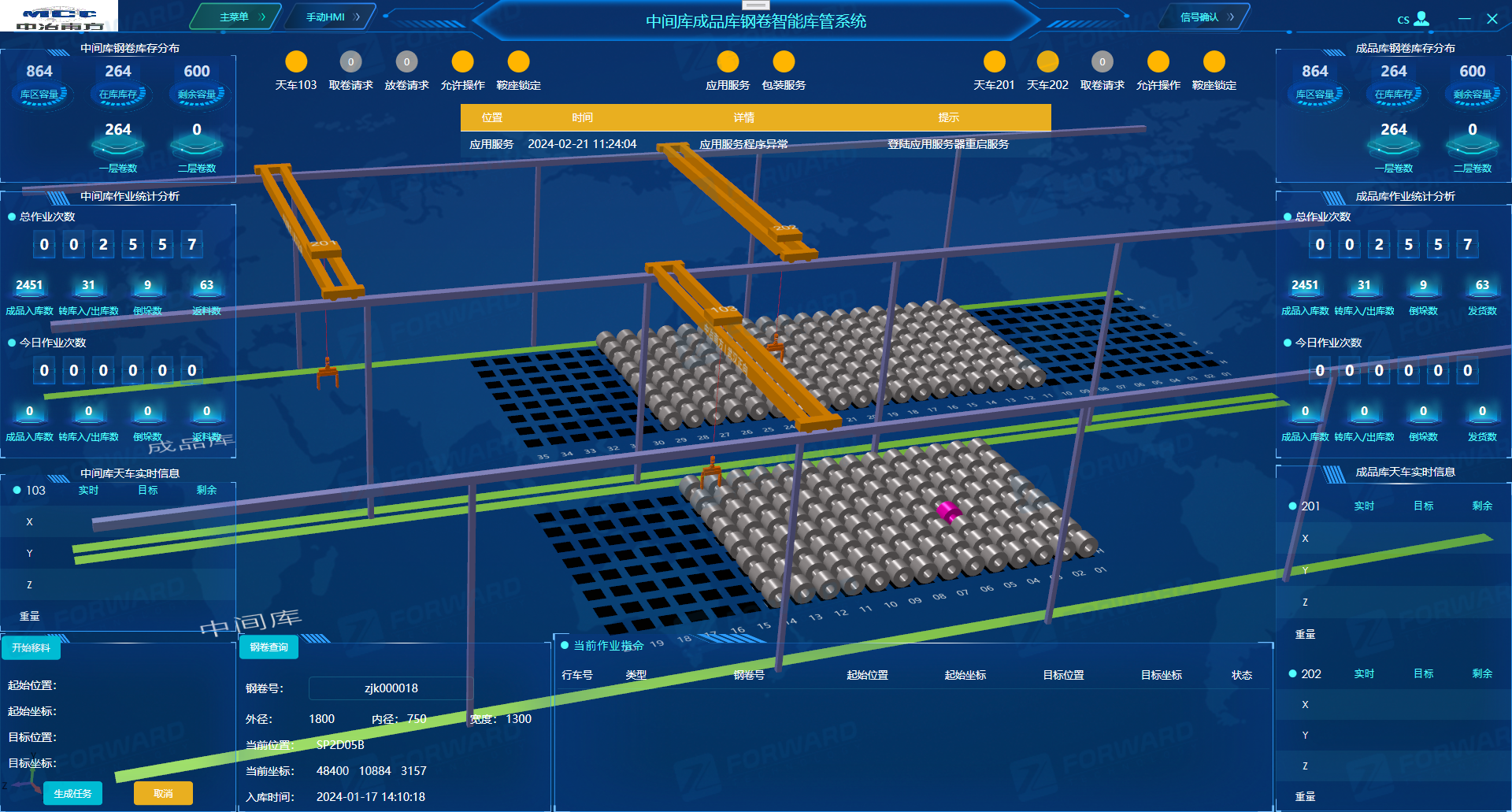

4. Instant Inventory System
Based on 3D point cloud and real-time data processing, inventory information is updated within seconds, achieving inventory management accuracy exceeding 99.9%.
5. Anti-sway Technology
Anti-sway accuracy of ±0.4°, and hoist positioning deviation ≤25mm, improving operational stability and efficiency.
Problems the System Can Solve
High Safety Risks: Manual operations are prone to coil collisions, equipment damage, and the risk of working at height.
Lagging Inventory Management: Traditional manual inventory counting is time-consuming, prone to errors, and lacks timely information updates.
Low Operational Efficiency: Manual operations are slow, with delayed responses, making 24/7 continuous and efficient operation impossible.
Lack of Information Transparency: The location and status of coils in the warehouse are unclear, impacting production and delivery scheduling.
Why is this system necessary?
In industries like steel, metallurgy, and ports, steel coil storage management directly impacts production pace and logistics efficiency. Traditional manual operations are plagued by low efficiency, frequent errors, and poor safety. This system, driven by unmanned operations and real-time data, achieves:
Zero-collision operations, significantly improving safety
Real-time inventory visibility, supporting lean production and rapid decision-making
Reduced reliance on manual labor, lowering operating costs and improving responsiveness
Comprehensive digital management, providing the foundation for intelligent enterprise upgrades
Core application industries
Iron and steel metallurgical industry, port terminal logistics industry, heavy equipment manufacturing industry, non-ferrous metal processing industry, etc.
