In modern industrial automation, precise positioning of bridge cranes and gantry cranes is a fundamental requirement for unmanned operation, semi-automatic yards, and warehouse management systems. Whether it is the long travel (along the runway) or cross travel (along the bridge) of a crane, real-time, high-accuracy position feedback determines the efficiency, safety, and reliability of the entire material handling process.

Wuhan Forward Technology Co., Ltd. specializes in industrial mobile machinery unmanned driving and unmanned operation technologies. This article introduces our Gray Bus Positioning System – a mature, field-proven solution for bridge crane positioning system and gantry crane applications, delivering ±1 mm absolute positioning accuracy for both long travel and cross travel axes.

The Gray Bus Positioning System (also known as Gray Code Cable system) is designed specifically for harsh industrial environments, offering non-contact absolute position detection with exceptional reliability.

1. Why Does Crane Positioning Matter?

For any automated or unmanned crane system, the ability to know exactly where the crane is – at every moment – is the foundation of intelligent control. Precise positioning addresses three core challenges:

• Accurate Stopping: Aligning the crane precisely with material piles, bins, or storage bays without manual intervention.



• Collision Prevention: Real-time position data enables soft limit control between cranes and infrastructure.

• Path Optimization & Efficiency: Accurate position feedback allows the control system to plan the shortest, fastest route, reducing cycle times and energy consumption.

Industries such as metallurgy, chemical processing, power generation, port terminals, cement production, and railway logistics all require high-reliability crane positioning – often in harsh environments where dust, high temperatures, and corrosive substances are present.

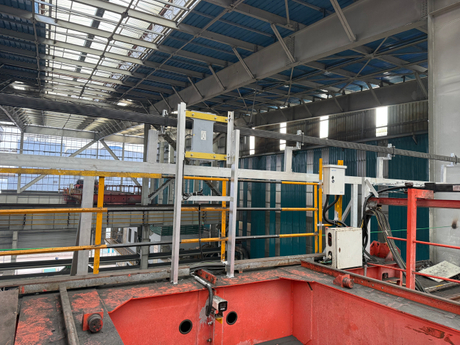

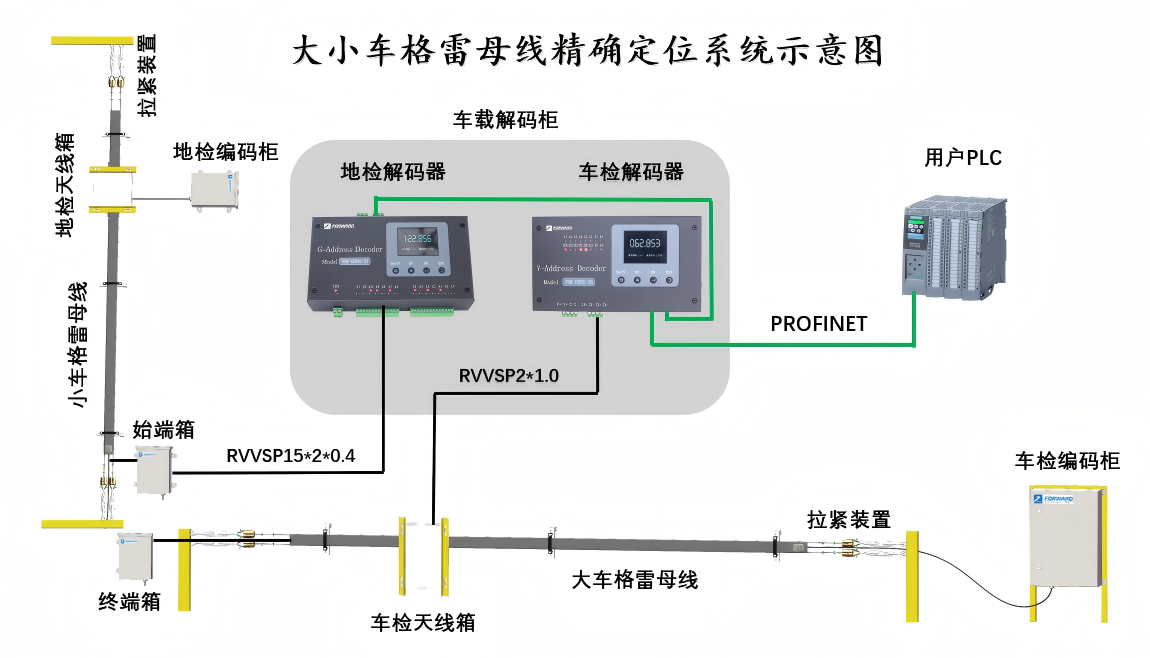

2. How Gray Bus Positioning System Works

Forward‘s Gray Bus Positioning System is based on electromagnetic induction. Forward‘s Gray Bus technology has evolved to its third generation, featuring fully digital detection. The internal rigid core is manufactured with precision CNC machining, and the threading card is produced using high-precision molds – without foam filling – significantly improving address detection accuracy and linearity.

The Gray Bus Positioning System is particularly well-suited for bridge crane positioning system applications, where precise long travel and cross travel control is essential for automated material handling.

3. Technical Specifications

Below are the key technical parameters of Forward’s Gray Bus Positioning System:

4. Core Advantages of Forward Gray Bus Positioning System

① Non-contact Operation – The antenna box and Gray Bus operate without mechanical contact, eliminating wear and slippage failures, resulting in long service life.

② Absolute Position Detection – Due to the Gray code encoding characteristics, the system detects absolute address without cumulative error. Power loss does not require re-homing.

③ Continuous Position Detection – No detection blind spots along the entire travel length.

④ High Precision (±1 mm) – Meets the positioning requirements for automatic crane travel and fully automatic operation.

⑤ No Frequency Band License Required – The system operates at low frequencies, with the electromagnetic field limited to a range of a few meters, requiring no frequency band application from regulatory authorities.

⑥ Strong Anti-interference – Using cross-twisted structure and phase detection technology, the system works reliably with gaps from 30 mm to 300 mm, unaffected by environmental noise or signal level fluctuations – ideal for dusty, oily, or electromagnetically noisy industrial environments.

⑦ Harsh Environment Ready – Outdoor-installed Gray Bus cables, fixtures, and antenna boxes are made of non-metallic materials with sealed construction, resistant to acid and alkali corrosion. Suitable for ports, metallurgy, mining, and other extreme conditions.

⑧ Multi-vehicle Sharing – Multiple mobile vehicles can share a single Gray Bus, reducing installation costs.

5. Synergy with Anti-swing Technology

Beyond Gray Bus positioning, Wuhan Forward Technology has also developed a proprietary anti-swing control technology. By combining the real-time position data from the Gray Bus with anti-swing algorithms, the system can eliminate load swing by up to 96%, with the final positioning deviation controlled within ±25 mm. This integration is critical for unmanned crane applications, ensuring both speed and precision during automatic material handling.

6. Applications and Reference Customers

Forward‘s Gray Bus Positioning System has been successfully deployed across multiple industries:

Notable customers include: BAOWU, WISDRI, BAOSIGHT, BPI, Vietnam Hoa Phat Dung Quat Iron and Steel Complex, Wuhan Iron & Steel Co., Ltd., Liuzhou Iron & Steel Co., Ltd., Maanshan Iron & Steel Co., Ltd., Rizhao Steel Holding Group Co., Ltd., Taiyuan Iron & Steel (Group) Co., Ltd., Midea Group Co., Ltd., and Jiuquan Iron & Steel (Group) Co., Ltd.

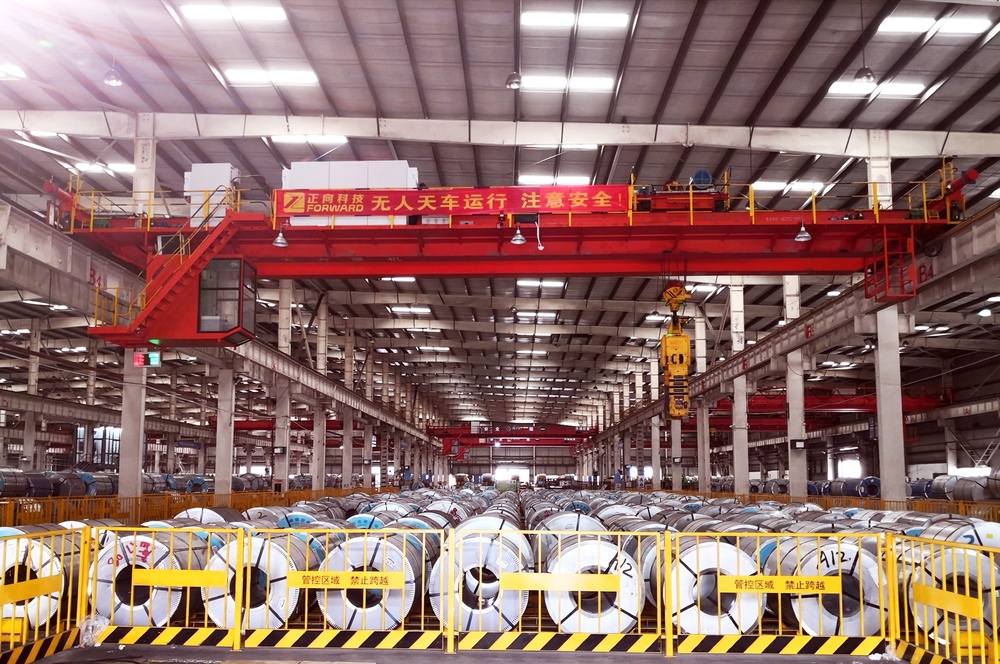

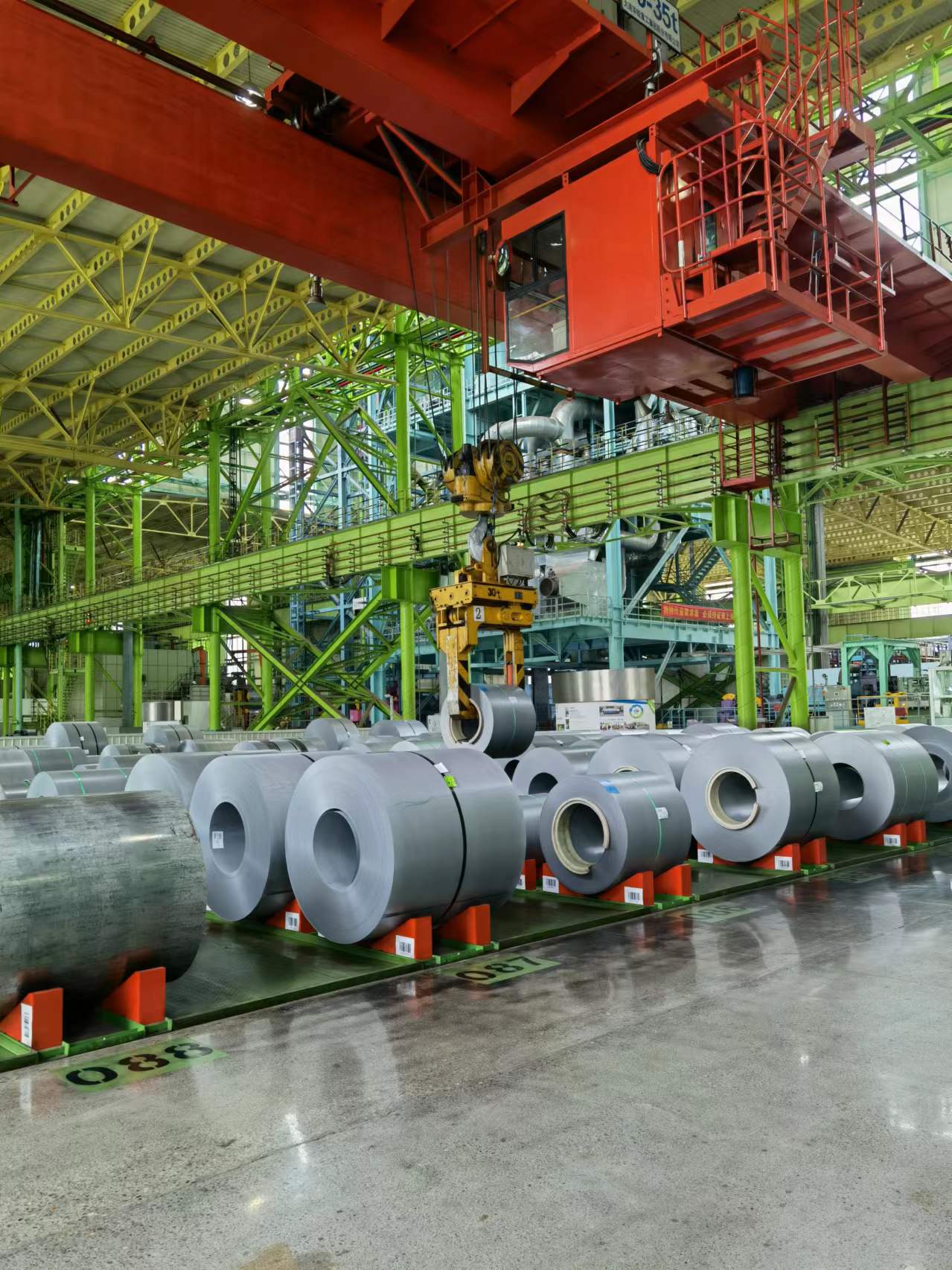

（Unmanned system for steel coil warehouse crane）

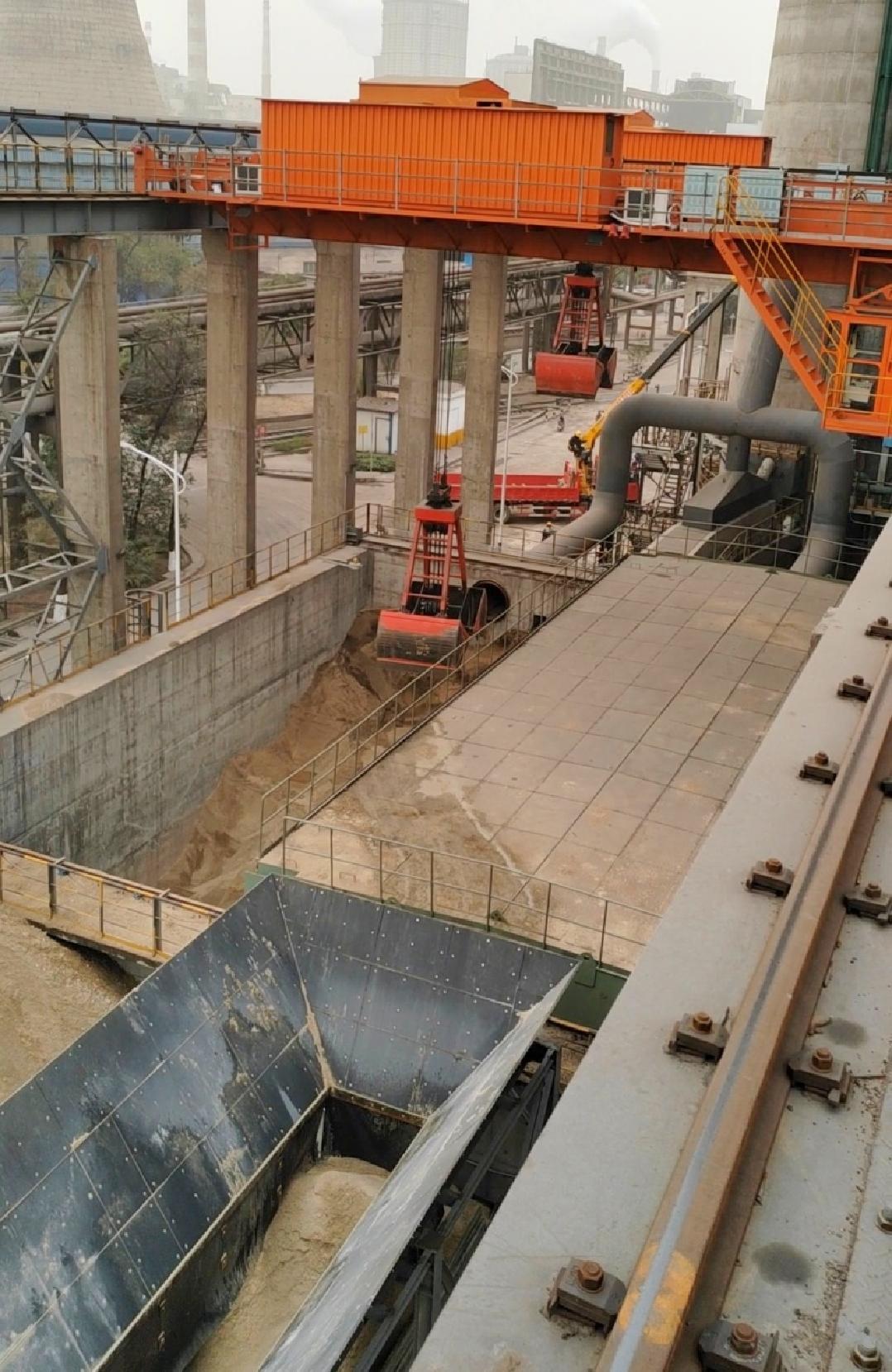

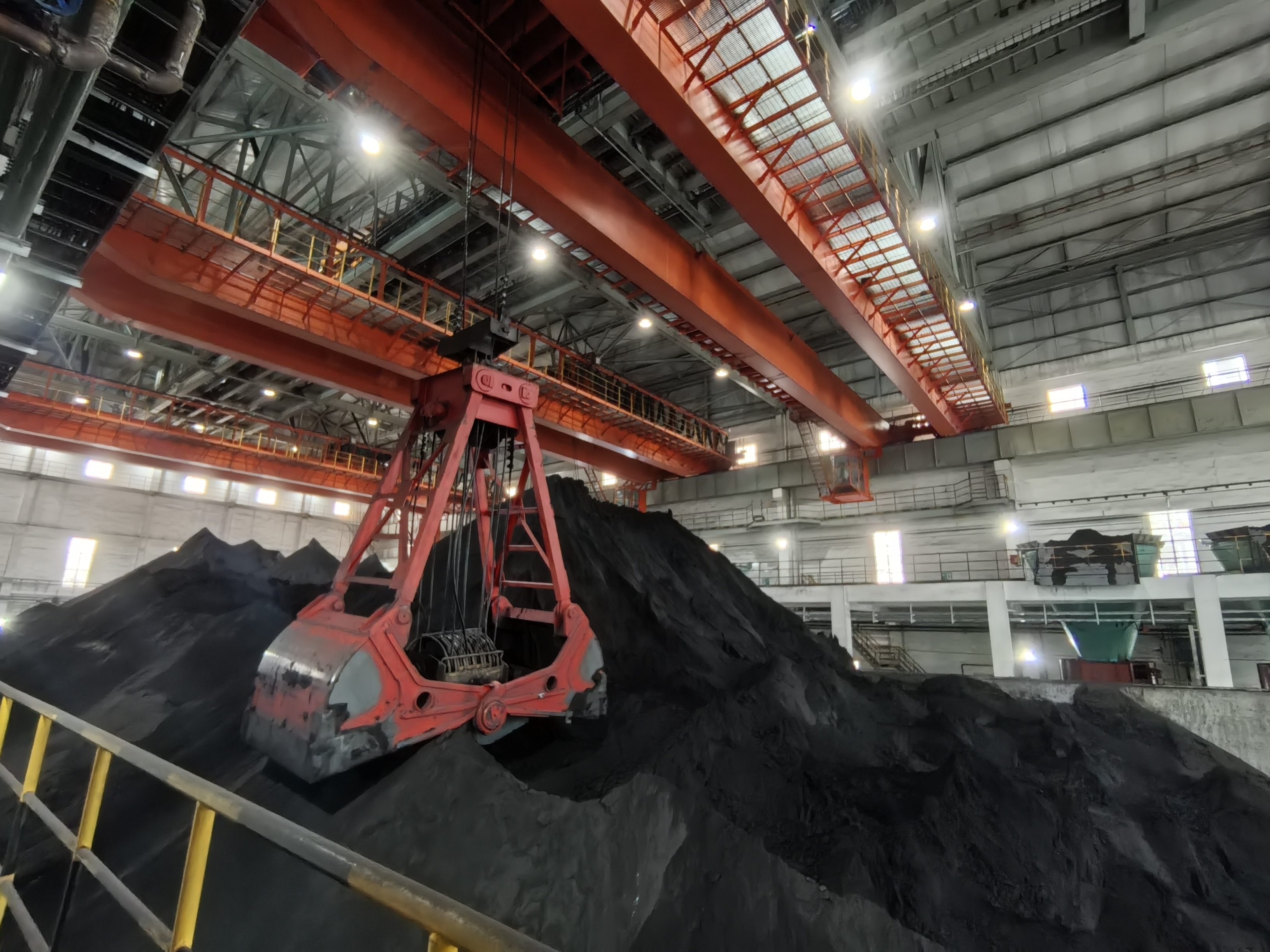

（Grab crane unmanned system）

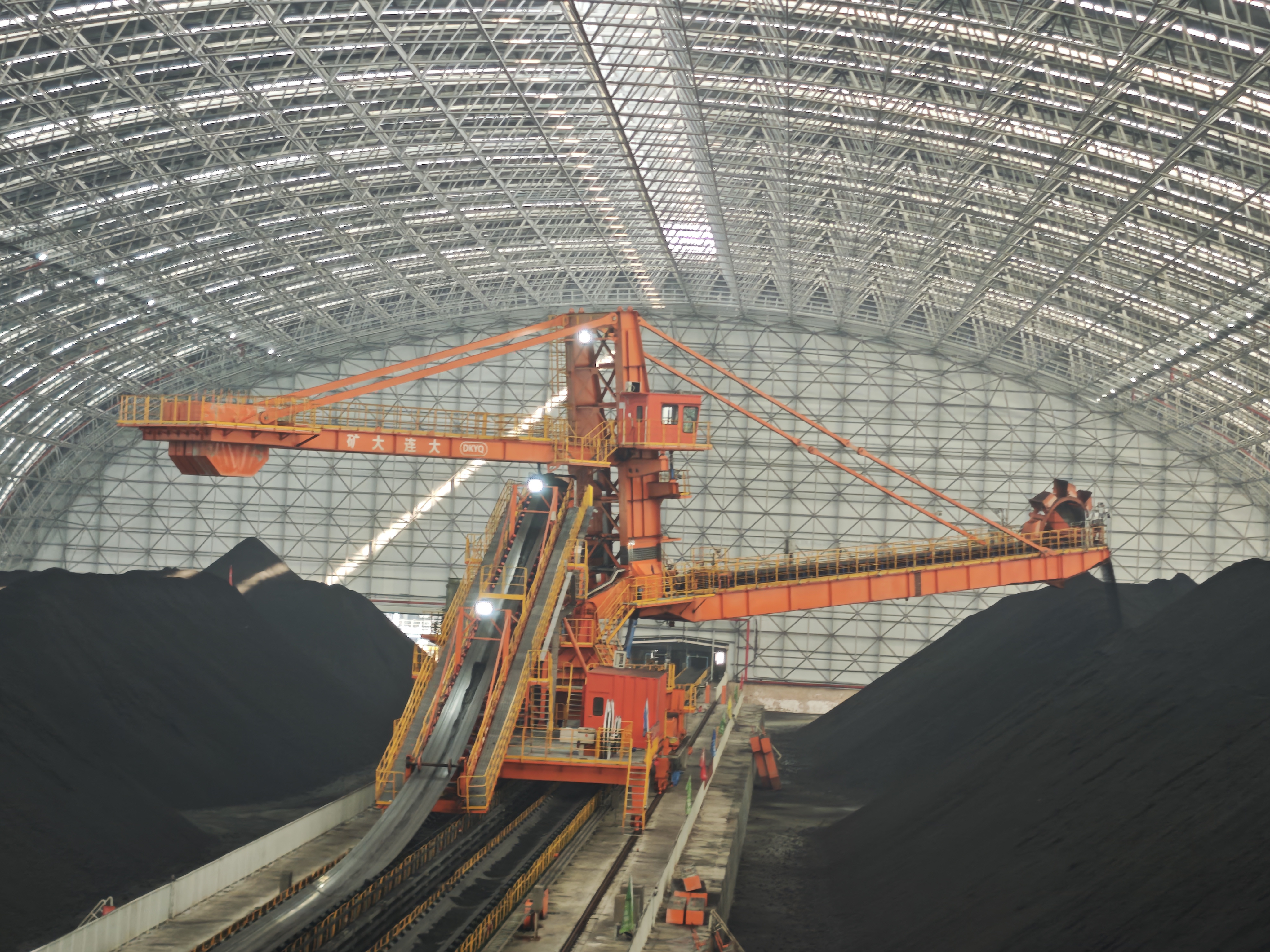

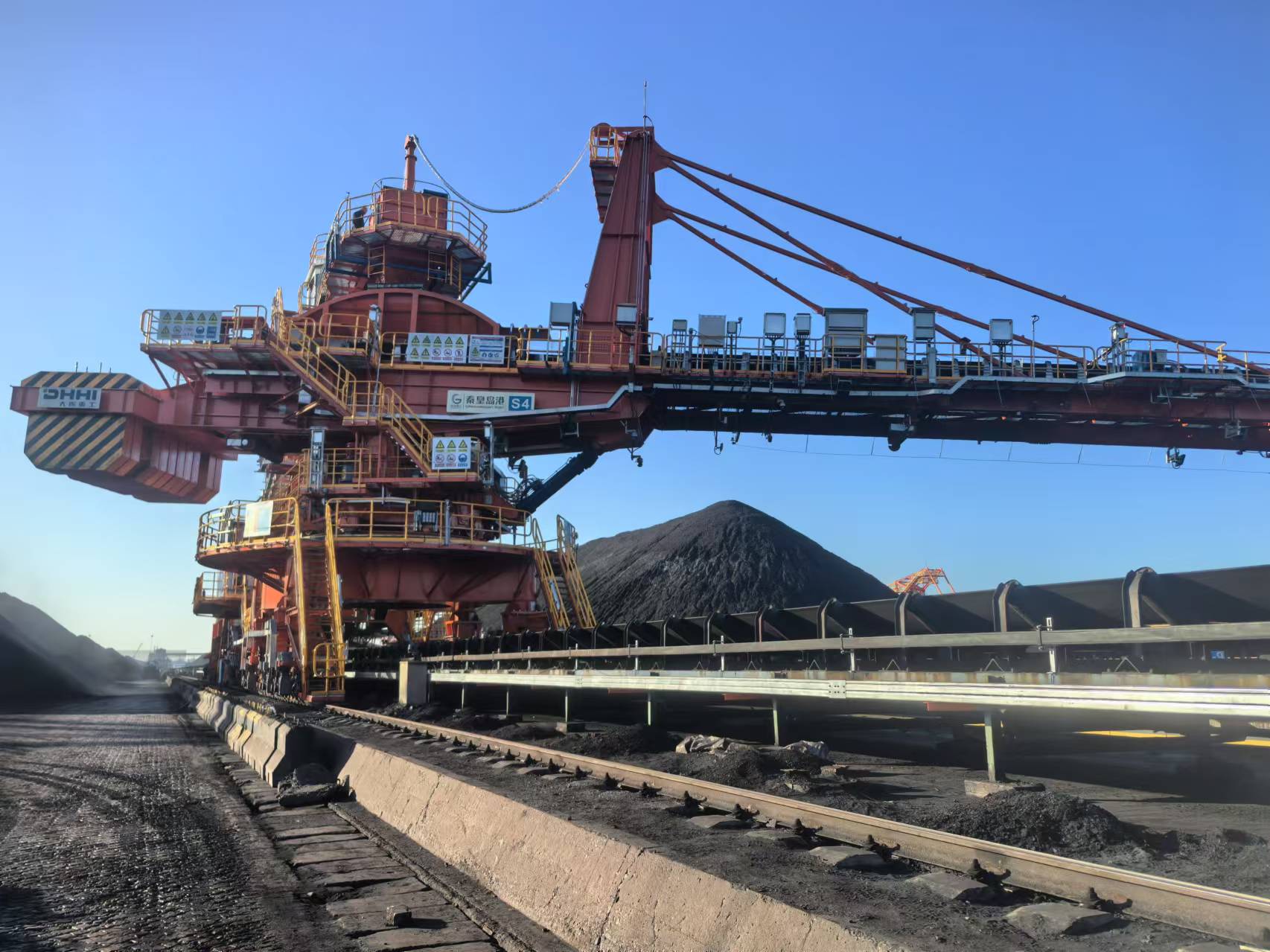

（Unmanned stacker-reclaimer system）

7. Comparison with Alternative Positioning Technologies

Forward‘s Gray Bus system stands out for its ability to deliver continuous absolute positioning in harsh environments where optical-based systems fail.

8. Frequently Asked Questions

Q: What is the maximum length of a Gray Bus?
A: Customizable, achieving any required length.



Q: Can the system support both long travel and cross travel positioning on the same crane?
A: Yes. Long travel and cross travel use two separate, independent Gray Bus systems – one along the runway and one along the trolley track.



Q: Can Gray Bus be used for crane anti-collision?
A: Yes. By comparing real-time position data from multiple cranes on the same runway, the control system can implement soft limit protection to prevent collisions.



Q: Is the system suitable for outdoor and harsh environments?
A: Yes. The Gray Bus is rated IP68 (submersible), and the antenna box is rated IP66. The system is resistant to dust, acid, alkali, and high temperatures – verified in metallurgy, mining, and port applications.



Q: What is the expected service life of the Gray Bus?
A: Designed for over 10 years of service. The rigid inner core combined with tire-rubber sealing minimizes thermal expansion and contraction, ensuring long-term durability in corrosive environments.
