Operating automated bridge cranes in heavy industries exposes positioning sensors to extreme conditions. Steel mills, cement plants, and port terminals represent highly hostile environments. Traditional tracking technologies often fail completely when deployed here. Rotary encoders typically suffer from severe mechanical slippage on greasy tracks. At the same time, heavy dust and thick smoke easily blind highly precise laser distance sensors. Industrial operators desperately need a continuous, fail-safe tracking method to maintain production schedules and ensure floor safety.
A Gray Bus Positioning System offers a robust, non-contact electromagnetic alternative. It guarantees absolute position detection without relying on clean optics or mechanical friction. In this article, you will discover how this technology drives higher throughput. You will also learn how it prevents costly downtime and significantly lowers Total Cost of Ownership (TCO) in aggressive industrial environments.
Immunity to Harsh Environments: Gray bus technology relies on electromagnetic coupling, making it entirely impervious to dust, heavy dirt, oil, and moisture (often rated IP68).
Elimination of Mechanical Errors: Unlike wheeled encoders, non-contact absolute positioning ensures zero data drift from wheel slippage or track irregularities.
Favorable TCO: By removing physical wear-and-tear and eliminating the need for optical lens cleaning, Gray Bus systems drastically reduce predictive and reactive maintenance costs.
Seamless Automation Integration: Provides stable, millimeter-level absolute coordinates necessary for closed-loop control, 3D automated container handling, and predictive maintenance tracking.
True crane automation requires uninterrupted, high-fidelity kinematic data. Sensor failure directly causes unexpected operational downtime. It also introduces severe safety hazards to personnel working on the factory floor. Plant managers know sensor reliability dictates overall throughput. When your positional data drops, your entire automated workflow stops.
Rotary encoders measure distance using physical mechanical wheels. These wheels frequently slip on uneven or greasy crane tracks. Slippage forces continuous mechanical contact, leading to rapid component wear. Maintenance teams must then perform frequent re-zeroing and manual calibration. This manual intervention wastes valuable production hours and increases labor costs.
Laser and LiDAR sensors deliver extreme accuracy in clean facilities. However, heavy industrial environments tell a different story. Heavy dust in clinker plants or thick smoke in metallurgy facilities quickly blocks delicate optical lenses. Once the lens becomes obstructed, the sensor blinds. The automated crane then abruptly halts to prevent collisions.
Limit switches present another legacy bottleneck. They only provide binary, presence-or-absence data points. You cannot build continuous travel profiles using simple limit switches. They completely fail to support dynamic path optimization. They simply lack the data granularity needed for modern closed-loop control systems.

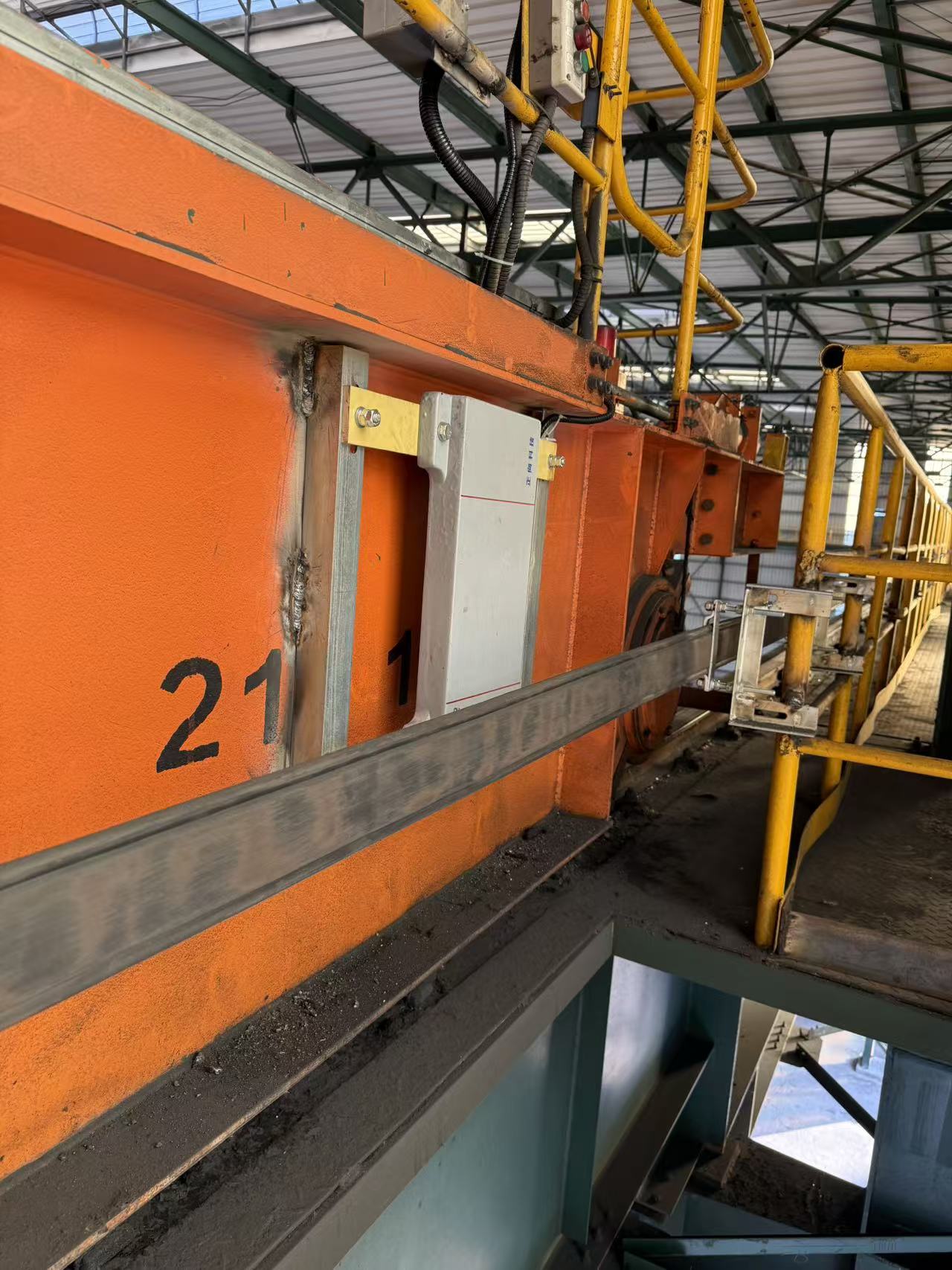

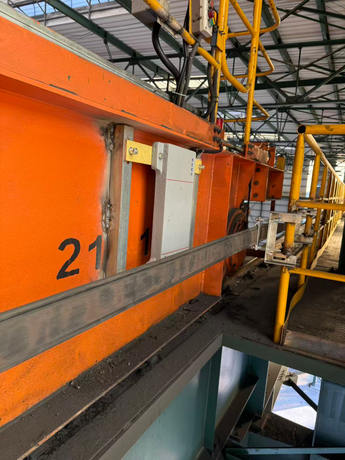

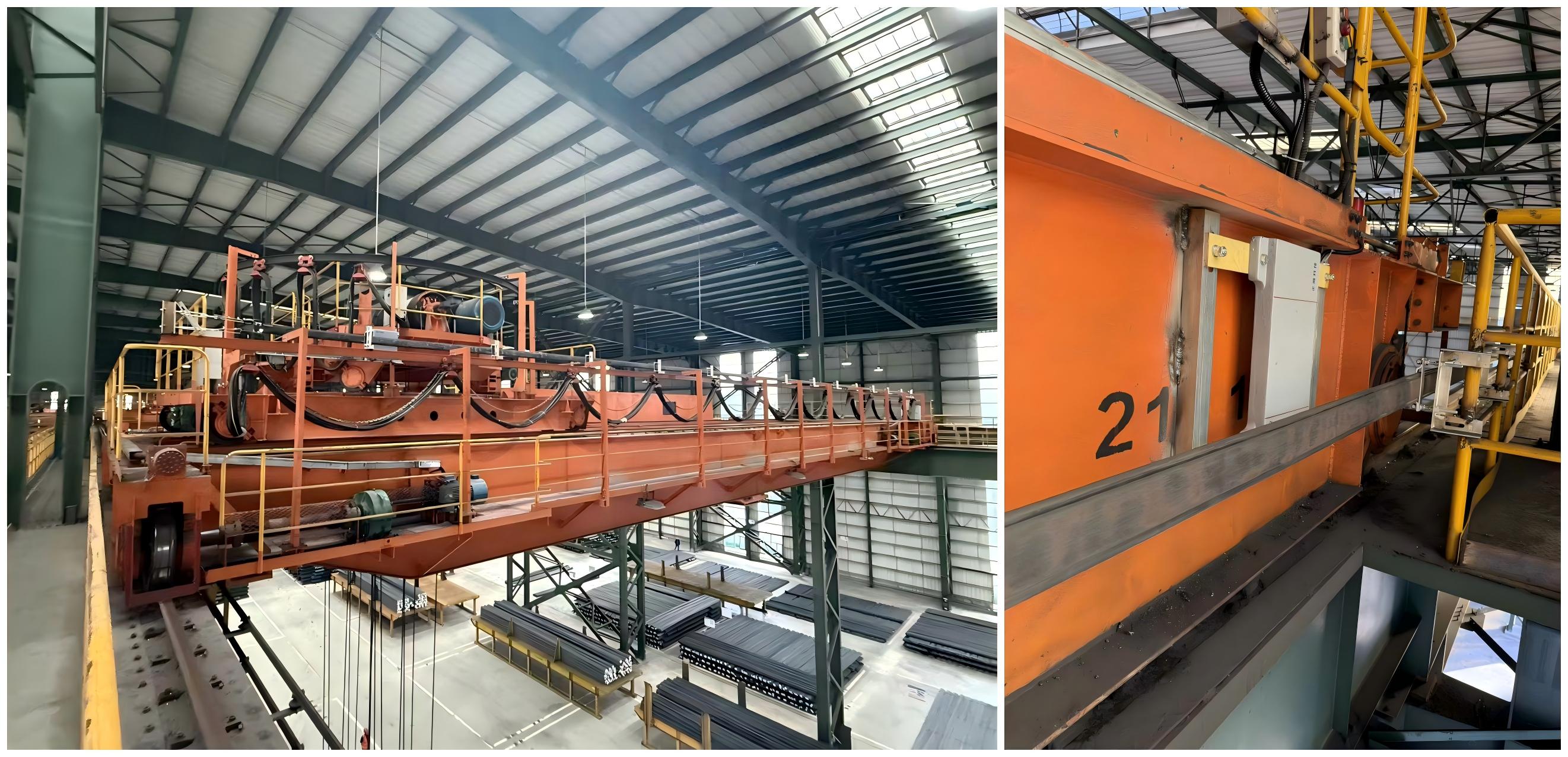

A Gray Bus Positioning System operates via a rugged flat cable. You install this cable along the entire length of the crane runway. It contains internal baseline and address lines. This static bus cable communicates directly with a highly sensitive antenna box mounted on the moving crane. The system uses continuous electromagnetic induction to transfer precise coordinate data.
The technology relies on Gray code principles to deliver absolute location data continuously. If a sudden power loss occurs, the crane instantly knows its exact position upon reboot. Operators never need to manually drive the equipment back to a reference or zero point. This absolute tracking feature dramatically speeds up recovery after unexpected plant power outages.
Unlike optical lasers, it functions flawlessly without direct line-of-sight. The rugged components typically carry a rigorous IP68 rating. They easily resist heavy water, acidic vapors, strong alkali exposure, and severe track vibration.
Best Practice: While the bus inherently resists dirt and moisture, always ensure proper shielding against high-power electrical interference during installation. Routing the bus too close to unshielded high-voltage motor lines can induce noise.
Engineers must compare positioning solutions based on distinct, practical criteria. You should carefully evaluate absolute accuracy, environmental tolerance, and ongoing maintenance demands. The right choice depends entirely on your specific operating environment.
Technology | Accuracy | Environmental Tolerance | Maintenance Demands |
|---|---|---|---|
Gray Bus | 2mm - 5mm | Excellent (IP68, immune to dust/smoke) | Very Low (Non-contact) |
Laser Sensors | Sub-millimeter | Poor (Blinded by dust/oil) | High (Lens cleaning required) |
61 GHz Radar | Centimeter-level | Excellent (Penetrates dust) | Low (High upfront cost) |
Rotary Encoders | Variable (Drifts) | Moderate (Vulnerable to grease) | High (Mechanical wear) |
Laser sensors excel when you need ultra-high, sub-millimeter accuracy in completely clean environments. However, choosing a Gray Bus Positioning System is much smarter for heavily polluted settings. Optical technology requires constant manual cleaning to prevent signal loss outdoors or in dusty mills. Gray bus technology completely eliminates this specific maintenance burden.
Both technologies effectively resist heavy dust and airborne dirt. Industrial radar offers a highly robust solution but represents a significantly higher capital expenditure. Radar deployment often requires complex calibration procedures. Conversely, an electromagnetic flat bus offers a highly cost-effective, easily scalable alternative specifically tailored for linear track positioning.
Many port facilities use composite systems combining rotary encoders and RFID tags. These fusion methods work well for rubber-tyred gantry (RTG) cranes. RTG cranes frequently suffer from lateral yaw and unpredictable track deviation. However, bridge cranes and trolleys run on strictly guided X and Y linear tracks. For these fixed rigid paths, an electromagnetic bus is far more efficient.
Transitioning to a non-contact tracking method translates directly into substantial financial savings. You have no moving wheels to replace. Technicians do not need to wipe fragile optical lenses daily. The system eliminates frustrating mechanical realignment tasks. This dramatically drops both predictive and reactive maintenance costs across the fiscal year.
Accurate positional data enables highly confident, high-speed automated travel profiles. You significantly reduce slow crawling speeds. You also eliminate dangerous load overshooting. Upgrading the sensor foundation can increase overall system efficiency and yard utilization by double-digit percentages. Faster cycle times directly increase your facility's daily throughput capacity.
A solid tracking bus delivers highly consistent, reliable kinematic data. You can constantly monitor critical operational metrics. This data feeds directly into graphical analysis tools to optimize plant energy usage before catastrophic mechanical failures occur.
Travel Distance: Track total mileage to schedule motor bearing replacements.
Velocity: Detect abnormal speed drops indicating rail friction.
Acceleration: Monitor jerk profiles to prevent undue stress on hoisting cables.
Engineers can leverage this data using specific analytical frameworks. For example, Rainflow matrices map high-frequency stress cycles to optimize daily crane routes. Pareto diagrams quickly isolate the primary mechanical causes of unexpected downtime. Real-time velocity tracking identifies mechanical resistance spots along the rail.
You must physically install the flat bus cable along the entire length of the crane runway. Planners must carefully account for mounting logistics on existing infrastructure. Older crane tracks often feature warped or uneven steel I-beams. Custom mounting brackets are usually necessary to keep the cable strictly parallel to the travel path.
Common Mistake: Do not attempt to bend the flat bus cable beyond its rated bend radius during corner routing. Always keep layouts strictly linear to prevent damaging internal address lines.
Seamless integration requires verifying communication protocols early in the design phase. The new positioning system must talk seamlessly to existing PLCs and variable frequency drives. Common supported industrial standards include Profinet, Profibus, RS485, and SSI. Always map out your facility's network topology before purchasing hardware.
This technology provides the perfect solution for the X-axis (bridge) and Y-axis (trolley). However, a comprehensive 3D automated container handling system demands more data. You will still require absolute multi-turn encoders for the Z-axis. The Z-axis must accurately measure vertical hoist and spreader height.
This electromagnetic solution is ideal for heavy-duty, fixed-rail overhead cranes. It excels in dirty, aggressive environments. However, it is not suitable for trackless, free-roaming vehicles like AGVs or autonomous forklifts. For free-roaming factory assets, rely instead on GPS, LiDAR, or advanced Vision systems.
A Gray Bus Positioning System effectively bridges a critical industrial gap. It solves the mechanical unreliability of traditional rotary encoders. It also overcomes the environmental fragility of laser distance sensors. This technology offers an industrial-grade, fail-safe solution for absolute bridge crane position detection.
For facilities prioritizing zero-maintenance operations, this system shines. It provides the most stable foundation available for closed-loop crane control in challenging environments. Eliminating mechanical friction and optical blindness guarantees a higher return on automation investments.
To move forward, conduct a thorough site assessment today. Measure your total runway length accurately. Document specific environmental hazards like ambient dust or oil vapor levels. Finally, verify your existing PLC protocol requirements. This data will help you spec the correct bus cable length and compatible antenna configuration.
A: Most industrial Gray Bus systems provide an absolute positioning accuracy of roughly 2mm to 5mm, which is more than sufficient for heavy-duty crane automation and collision avoidance.
A: No. Because it utilizes absolute encoding via electromagnetic induction, the system reads its exact physical location the moment power is restored.
A: Yes. The systems are typically sealed to IP68 standards, making them highly resistant to rain, snow, temperature fluctuations, and direct sunlight, unlike many optical sensors.
A: Gray Bus systems are highly scalable and can be spliced to cover extensive runway lengths, easily supporting operational tracks spanning several hundred meters to over a kilometer.
