In fully or semi-automated container terminals, ship-to-shore (STS) quay crane trolley positioning acts as a mission-critical bottleneck. Millimeter-level inaccuracy or unexpected signal loss directly impacts your moves-per-hour and overall site safety. Marine environments aggressively degrade delicate sensor performance on a daily basis. Constant high salinity, heavy coastal fog, torrential rain, and relentless structural vibration cause traditional optical and radar systems to fail routinely. Evaluating a robust Ship loading and unloading machine position detection system requires moving beyond theoretical laboratory accuracy to practical, real-world reliability. This guide examines why the Gray Bus Positioning System rapidly became the industry standard for absolute, uninterrupted trolley positioning. You will learn about operational bottlenecks, core technology principles, technical evaluations against legacy sensors, and critical implementation strategies to future-proof your terminal operations.
Absolute Reliability: Gray bus technology provides continuous, absolute positioning immune to optical obstruction (fog, heavy rain, dust) and structural vibrations.
Harsh Environment Tolerance: Designed specifically for high-salt, high-humidity marine terminal conditions where traditional laser or radar sensors degrade or experience false readings.
Predictable TCO: Reduces unplanned crane downtime and ongoing maintenance costs associated with optical sensor cleaning or mechanical encoder wear.
Seamless Integration: Delivers real-time position data directly to the crane’s PLC and terminal WCS, supporting advanced anti-sway and automated target detection algorithms.
STS cranes drive the primary throughput capacity of any modern port. Every single trolley movement dictates the rhythm of your wider logistics chain. Trolley positioning failures lead directly to severe spreader misalignment. This misalignment creates immediate collision risks between the spreader and the container stack. It also abruptly halts your ship loading and unloading cycles. Operators simply cannot afford these blind spots. You lose thousands of dollars per hour during unexpected automated micro-stoppages. Resolving this bottleneck remains a top priority for terminal engineering teams globally.
Traditional sensors repeatedly fall short in aggressive marine climates. Optical and laser systems rely entirely on a clear line-of-sight. They fail routinely during heavy fog or torrential coastal rain. Water droplets scatter the laser beam unpredictably. Marine salt and industrial dust also quickly coat their glass lenses. This ongoing contamination demands frequent manual cleaning by maintenance crews. Radar sensors attempt to solve this visibility issue. However, they struggle in their own specific ways. They often generate false echoes. Multipath interference bounces radar waves off highly metallic crane structures, confusing the receiver. Mechanical encoders represent another flawed legacy approach. They suffer from continuous mechanical slip and physical wheel wear. You must frequently recalibrate them to correct their inevitable relative positioning drift.
To solve these problems permanently, operators need fundamentally better tools. A viable tracking system must meet specific baseline requirements. We define the ultimate success criteria through three non-negotiable operational standards:
Provide true absolute positioning to prevent time-wasting reference runs after power cycles.
Feature zero mechanical wear to eliminate routine component replacements and manual recalibrations.
Demonstrate zero sensitivity to environmental obscuration from severe weather or industrial debris.

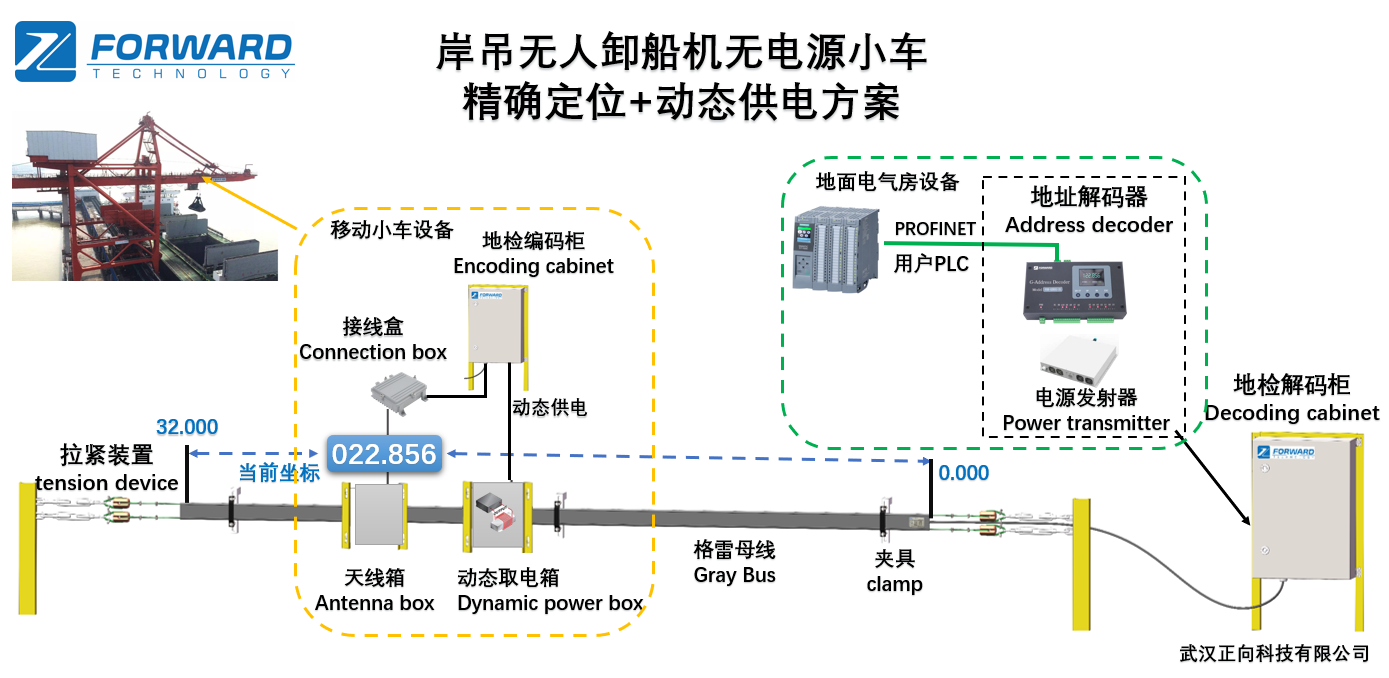

The inductive cross-linked cable principle completely changes the tracking paradigm. We commonly refer to this as the Gray Bus technology. It relies entirely on electromagnetic induction rather than fragile optical line-of-sight. This design ensures absolute position detection along the entire trolley travel path. The architecture utilizes a stationary cross-linked cable running along the girder. A moving antenna mounts directly to the trolley. As the trolley moves, the antenna reads the cable's unique magnetic footprint. The crossing points of the cable create distinct phase shifts. The system interprets these shifts to calculate an exact, unshakeable location coordinate.
Terminal operators deploy it specifically to guarantee continuous tracking. It functions perfectly as a highly reliable ship loading and unloading machine position detection system. The technology completely ignores airborne particulates. Fog, rain, and snow simply do not interact with electromagnetic fields. This physical reality allows your STS cranes to operate flawlessly regardless of local weather conditions. The system continuously feeds exact coordinates to the crane controller.
Engineering teams appreciate the elegant simplicity of the hardware design. The technology delivers several critical advantages over legacy options. These key engineering features directly support uninterrupted, high-speed terminal operations:
Non-contact measurement entirely eliminates physical mechanical wear and tear.
Absolute position retention eliminates the need to return to a "zero" reference point after a power loss.
High-speed tracking capabilities match modern STS crane trolley acceleration rates and top speeds seamlessly.
Terminal engineers need objective dimensions for procurement evaluation. We typically measure sensor performance across three vital features-to-outcomes dimensions. First, we assess environmental resilience. Lasers offer exceptionally low resilience in dense fog. Radar handles weather better but suffers from metallic noise interference. Induction technology delivers uniquely high environmental resilience. It simply ignores atmospheric conditions. Second, we evaluate long-range positioning accuracy. Lasers often diverge or lose precision over long trolley spans. Encoders suffer from physical track slip. Conversely, electromagnetic induction maintains consistent millimeter-level accuracy regardless of the travel distance. Third, we track maintenance frequency. Optical systems demand constant lens cleaning. Encoders require periodic wheel replacements. Induction systems require near-zero active maintenance.
The following comparison chart summarizes these technical evaluation dimensions clearly:
Evaluation Dimension | Gray Bus Technology | Laser / Optical Systems | Radar Sensors | Mechanical Encoders |
|---|---|---|---|---|
Environmental Resilience | High (Immune to fog/rain) | Low (Fails in fog/dust) | Moderate (Metallic noise issues) | High (Unaffected by weather) |
Positioning Accuracy | Consistent millimeter-level | Degrades over long spans | Moderate millimeter-level | Prone to cumulative slip drift |
Maintenance Frequency | Near-zero active maintenance | High (Frequent lens cleaning) | Low active maintenance | High (Wheel wear replacement) |
Signal Continuity | Absolute, uninterrupted | Momentary blindness common | False echoes possible | Relative, requires recalibration |
Aligning your technology choices with industry standards ensures long-term viability. The Port Equipment Manufacturers Association (PEMA) publishes detailed terminal automation maturity recommendations. PEMA emphasizes continuous data availability as a prerequisite for higher automation levels. Relying on vulnerable optical sensors artificially restricts your operational maturity. It introduces unacceptable variability into your control loops. Upgrading to inductive absolute positioning aligns perfectly with PEMA best practices. It provides the foundational data reliability required for fully automated, unsupervised crane cycles.
Capital expenditure (CAPEX) and operating expenditure (OPEX) realities often dictate terminal procurement decisions. Initial installation of a Gray Bus Positioning System involves running physical cable along the crane girder. This upfront material and labor investment might exceed the cost of mounting a simple laser unit. However, you must evaluate the investment over a 15-year lifecycle. The long-term total cost of ownership (TCO) drops significantly. You essentially trade a slightly higher CAPEX for a drastically lower, highly predictable OPEX. This predictability satisfies both engineering and finance departments.
You can identify multiple distinct cost-saving nodes after deployment. First, you achieve massive downtime reduction. The technology fundamentally eliminates micro-stoppages caused by momentary sensor blindness. You no longer halt vessel operations simply to wipe sea salt off a glass lens. A single hour of delayed vessel departure costs tens of thousands of dollars. Preventing just two weather-related stoppages annually often covers the entire system cost. You reclaim those lost hours immediately.
Second, you benefit immensely from extended equipment lifespan. Components typically feature robust IP68 ratings. The system lacks vulnerable moving parts completely. It endures heavy vibration without internal degradation. In many ports, the induction hardware actually outlasts the operational lifecycle of the steel crane itself. You install it once during a major overhaul and forget about it.
Third, you capture major operational efficiency gains. Reliable absolute data feeds your Programmable Logic Controllers (PLC) continuously. This real-time data flow enables aggressive, optimized acceleration and deceleration profiles for the trolley. The anti-sway algorithms perform better when they receive uninterrupted, jitter-free position updates. Faster, smoother trolley movements directly increase your container moves-per-hour metric. Higher throughput translates directly to increased terminal revenue.

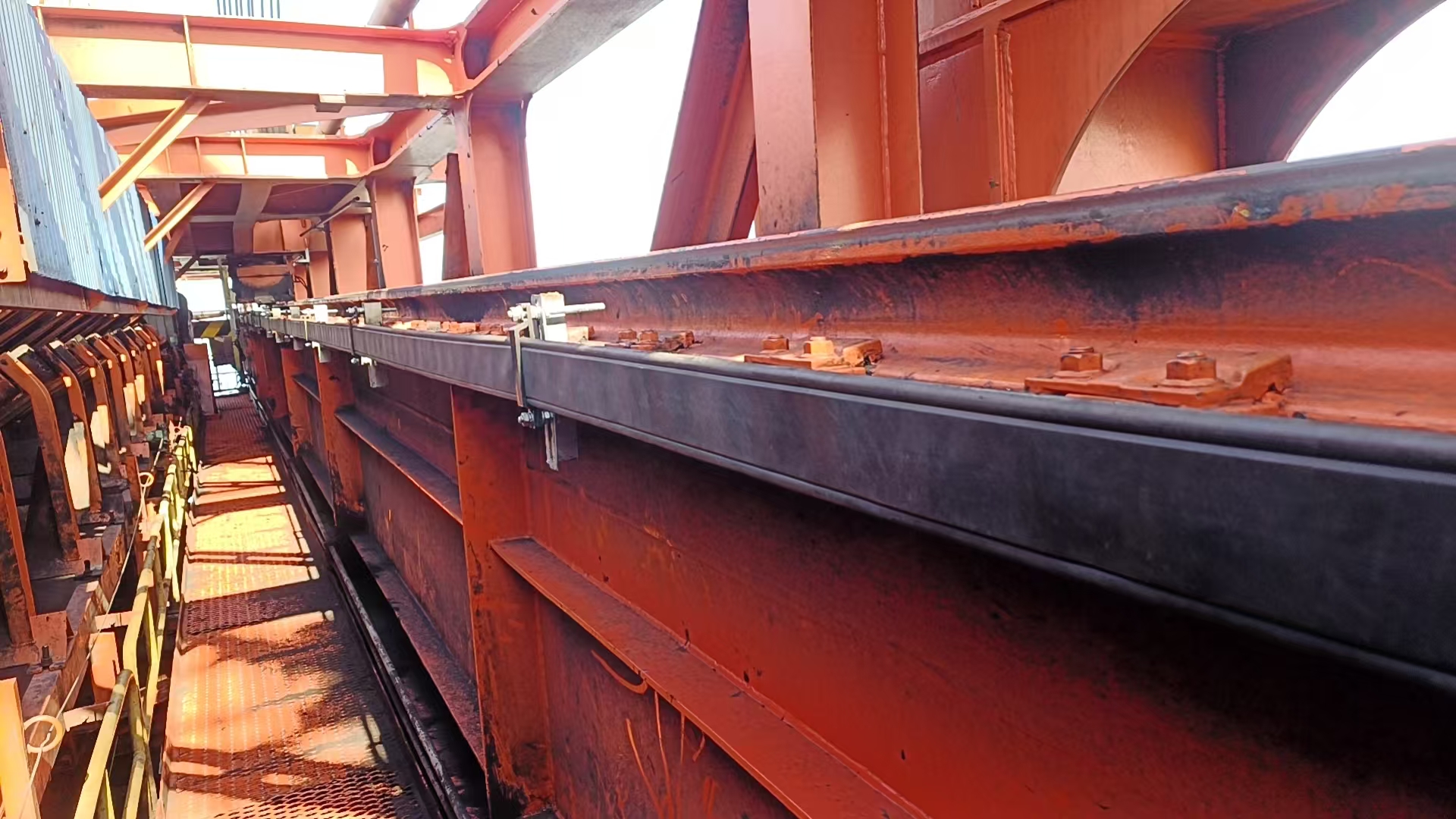

Deploying these systems requires meticulous site-specific planning. You must evaluate retrofitting scenarios differently from new builds. Brownfield deployments involve mounting the cable onto existing, older STS crane girders. Engineers must carefully consider tight space constraints. You also need to verify structural alignment along the entire boom. The mounting brackets must accommodate slight irregularities in older steelwork. Greenfield projects offer much easier implementation paths. You simply integrate the technical specification into your initial procurement requests. OEM crane builders then install and test the cable during initial factory assembly.
Integration with existing crane infrastructure requires standard industrial networking. You must connect the moving antenna reader to the crane's central PLC. Controllers typically utilize standard protocols like Profibus, PROFINET, or Modbus TCP. This continuous, millisecond-level data stream supports sensitive anti-sway control loops. It also feeds trolley position data directly into your Terminal Operating Systems (TOS). The TOS uses this data to optimize terminal tractor dispatching.
Physical installation presents specific mechanical challenges. Proper execution mitigates long-term operational risks. Engineering teams must follow strict mechanical guidelines to ensure signal integrity.
Best Practices for Rollout:
Conduct a full structural survey of the crane girder before mounting any hardware.
Utilize specialized mounting brackets designed specifically to absorb severe crane vibrations.
Terminate all communication cables using shielded, marine-grade connectors to prevent corrosion.
Common Mistakes to Avoid:
Failing to ensure proper initial installation tension of the bus cable. Loose cables sag heavily over 100+ meter spans.
Placing the communication antenna outside the recommended gap distance from the bus cable.
Ignoring thermal expansion factors on long steel crane structures during extreme summer temperatures.
Shortlisting Logic: Line-of-sight sensors introduce unacceptable operational risks for automated or semi-automated container terminals. You should always shortlist the Gray Bus system when reliability and absolute positioning rank higher than low initial component costs.
Analyze Historical Data: Engineering and procurement teams should audit their current crane downtime logs immediately. Accurately quantify all weather-related and sensor-related micro-stoppages.
Validate Through Testing: Request a pilot retrofit on a single high-utilization STS crane. This allows you to validate the electromagnetic induction approach in your specific local climate.
Standardize Procurement: Update your terminal design specifications to mandate non-contact, absolute positioning systems for all future crane purchases.
A: No. As an absolute positioning system, it instantly recognizes the exact trolley location the moment power is restored. It reads the unique magnetic phase shift immediately. This eliminates the need for time-consuming reference runs or manual recalibrations.
A: Yes. The electromagnetic scanning frequency is highly compatible with rapid acceleration profiles. It easily tracks the top speeds of both STS cranes and automated stacking cranes (ASCs) without dropping data packets.
A: Because it relies on magnetic induction rather than optical line-of-sight, it is completely immune to adverse weather. Heavy rain, dense sea fog, blowing salt spray, and extreme temperature fluctuations do not affect its millimeter-level accuracy.
A: Standard controllers typically support seamless integration with major PLC ecosystems. You can easily connect the reader via PROFINET, EtherCAT, Profibus, Modbus TCP, and other standard industrial Ethernet protocols used in port automation.
